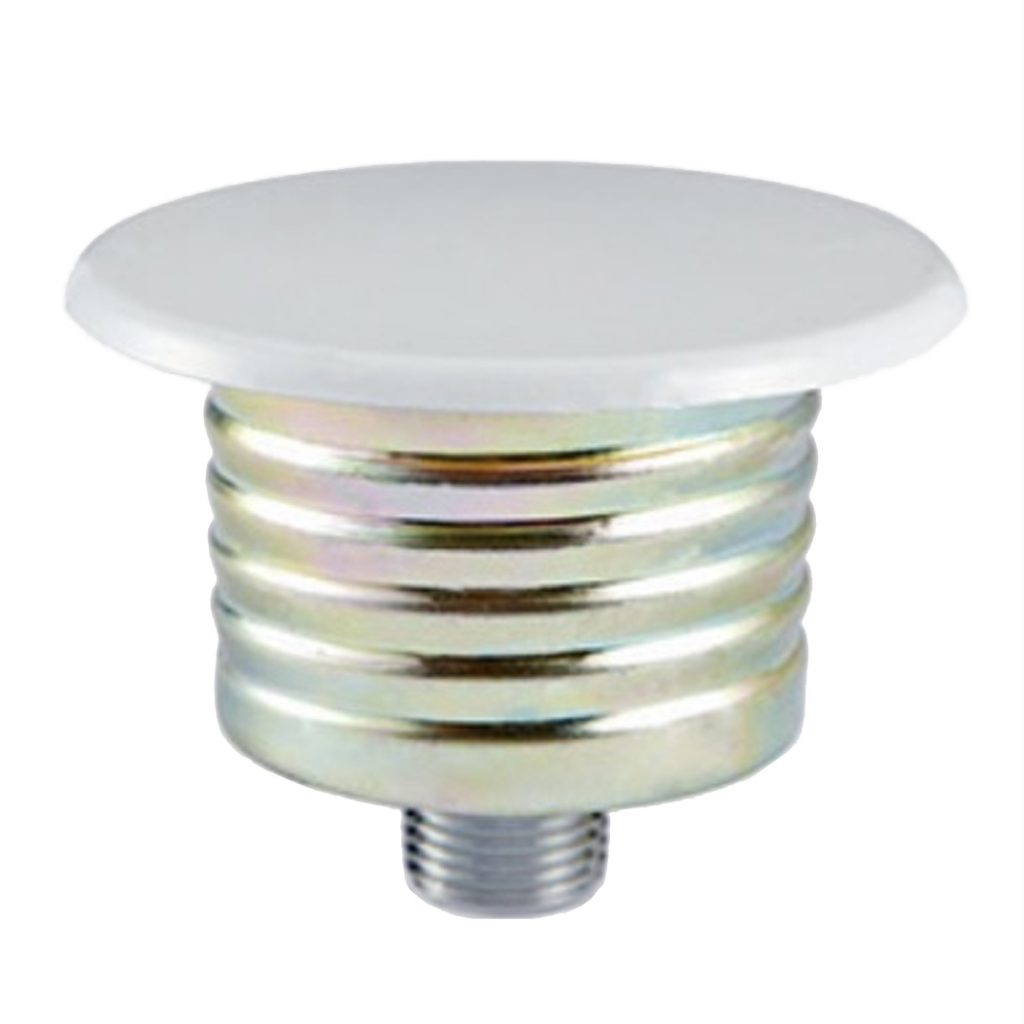

1. Nameplate logo: "M ZSTDY 20-68°C 2018" is engraved on the splash plate. "Not coatable" is marked on the concealed cover. "Minshan MS" is cast on the nozzle body. "Minshan MS" is cast on the nozzle body. "Minshan MS" is cast on the nozzle body.
2. Key components: 1. Name of action element: Glass ball Specification model Job F5 68°C ∅5mm/3mm 2. Name of sealing element: O-ring Specification model: ∅16mm×2mm
3. Product characteristic parameters: 1. Structural dimensions of the splash plate: round: ∅33mm Number of teeth: 10 large teeth, 4 small teeth 2. Dimensions of the hidden cover: outer diameter of the barrel: ∅58mm, outer diameter of the cover: ∅85.5mm 3. The diameter of the water outlet of the nozzle body: ∅13.5mm
